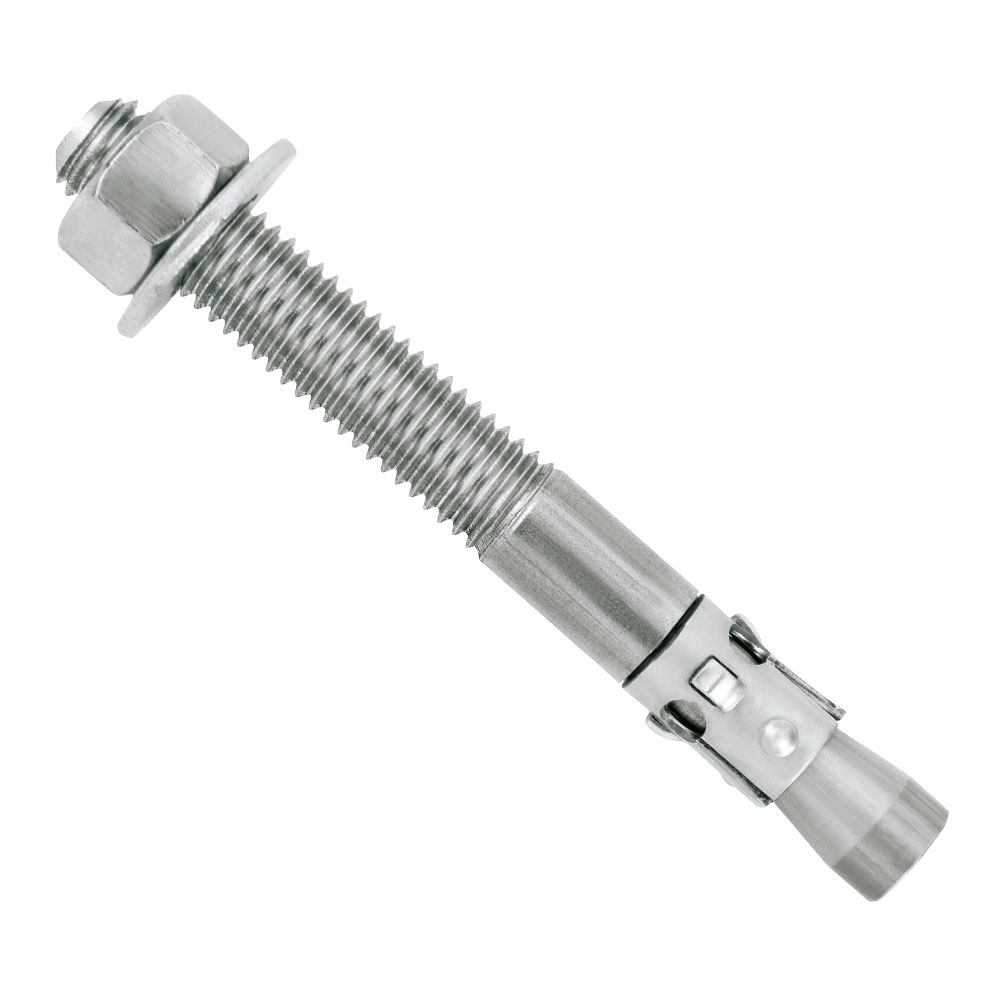

Wedge Type Expansion Anchor
The wedge anchor is a highly reliable expansion anchor designed for consistent performance in both cracked and un-cracked concrete. It features full threading and torque control for optimal strength. This versatile anchor is suitable for various base materials such as normal-weight concrete, structural sand-lightweight concrete, and concrete over metal deck. It is available in options including a zinc-plated carbon steel body or stainless steel body with an expansion clip.
Available in zinc-plated, Stainless Steel, and Hot Dipped Galvanized
Sold per pack
| Anchor Diameter | Useable Length | Thread Length | Pack Qty |
|---|---|---|---|
| 1/4" | 1-3/4" | 3/4" | 100 |
| 1/4" | 2-1/4" | 1-1/4" | 100 |
| 1/4" | 3-1/4" | 2-1/4" | 100 |
| 3/8" | 2-1/4" | 7/8" | 50 |
| 3/8" | 2-3/4" | 1-3/8" | 50 |
| 3/8" | 3" | 1-5/8" | 50 |
| 3/8" | 3-1/2" | 2-1/8" | 50 |
| 3/8" | 3-3/4" | 2-3/8" | 50 |
| 3/8" | 5" | 3-5/8" | 50 |
| 3/8" | 7" | 5-5/8" | 50 |
| 1/2" | 2-3/4" | 1" | 50 |
| 1/2" | 3-3/4" | 2" | 50 |
| 1/2" | 4-1/2" | 2-3/4" | 50 |
| 1/2" | 5-1/2" | 3-3/4" | 50 |
| 1/2" | 7" | 5-1/4" | 25 |
| 1/2" | 8-1/2" | 6-3/4" | 25 |
| 1/2" | 10" | 8-1/4" | 25 |
| 5/8" | 3-1/2" | 1-1/2" | 25 |
| 5/8" | 4-1/2" | 2-1/2" | 25 |
| 5/8" | 5" | 3" | 25 |
| 5/8" | 6" | 4" | 25 |
| 5/8" | 7" | 5" | 25 |
| 5/8" | 8-1/2" | 6-1/2" | 25 |
| 5/8" | 10" | 8" | 25 |
| 3/4" | 4-1/4" | 1-3/4" | 20 |
| 3/4" | 4-3/4" | 2-1/4" | 20 |
| 3/4" | 5-1/2" | 3" | 20 |
| 3/4" | 6-1/4" | 3-3/4" | 20 |
| 3/4" | 7" | 4-1/2" | 20 |
| 3/4" | 8-1/2" | 6" | 10 |
| 3/4" | 10" | 7-1/2" | 10 |
| 3/4" | 12" | 9-1/2" | 10 |
| 7/8" | 6" | 2-3/4" | 10 |
| 7/8" | 8" | 4-3/4" | 10 |
| 7/8" | 10" | 6-3/4" | 10 |
| 1" | 6" | 2-3/8" | 10 |
| 1" | 9" | 5-3/8" | 10 |
| 1" | 12" | 8-3/8" | 5 |
| 1-1/4" | 9" | 4-3/4" | 5 |
| 1-1/4" | 12" | 7-3/4" | 5 |
